Patch Cord CAT5e

Applications

The CAT5e Nexans patch cords line is the 100MHz bandwidth offer for class D applications up to 1Gbits. The Nexans CAT5e U/UTP patch cords are designed with multi-wire conductors allowing greater flexibility for maneuvering and data and voice applications by interconnecting the horizontal cabling in the work area or cross connection.

APPLICATIONS

• FAST ETHERNET 100BASE-TX
• GIGABIT ETHERNET 1000BASE-T
• TOKEN RING (100 Mbps)
• ATM LAN (155 Mbps & 622 Mbps)
• ISDN
• POE - POWER OVER ETHERNET
• POE+ - POWER OVER ETHERNET PLUS
• ANALOG AND DIGITAL COMMUNICATION FOR VIDEO AND VOICE

Design

Stranded Cable:

• External cover in flame retardant PVC CM.

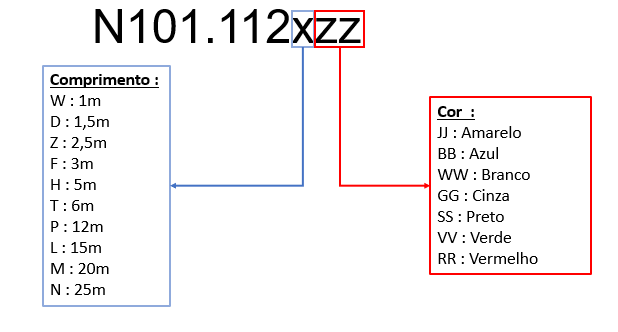

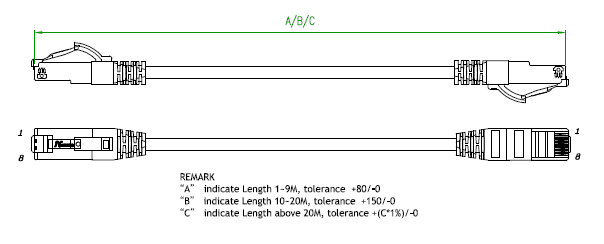

• Standard 1.5 and 2.5 meter length options in stock (others upon request).

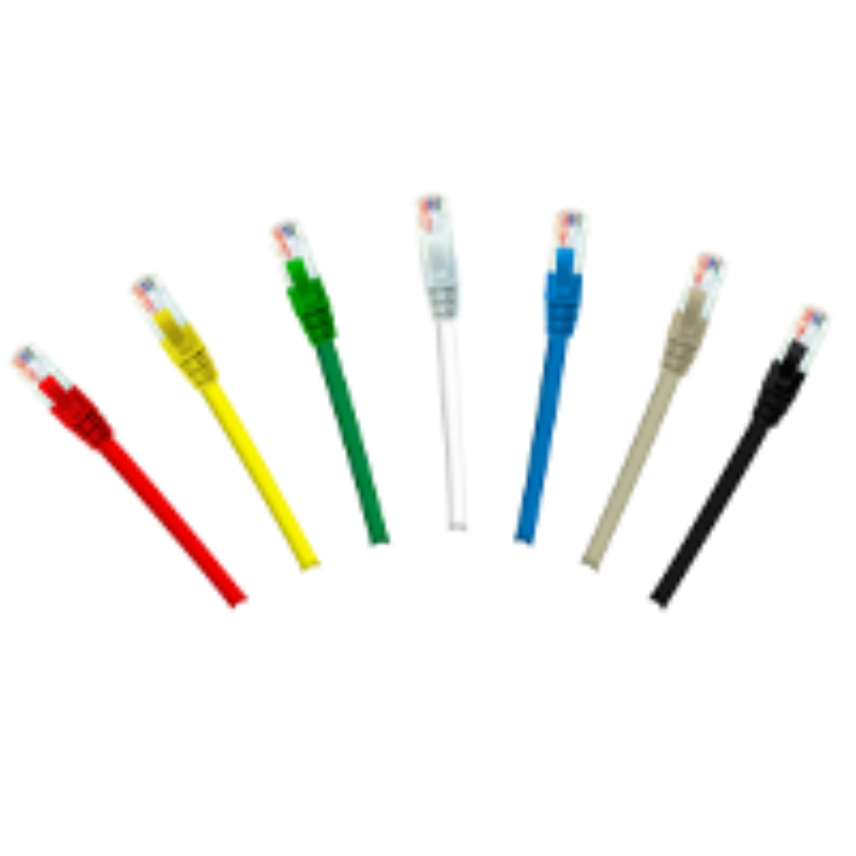

• Option of 7 different colors (Blue, Red, Gray, Black, White, Yellow and Green, others upon request).
• Individual packaging, preserving the product properties until the effective use.
• Flexible bare copper multi-wire cable assembled and tested 100% in factory with RJ45 at both ends.
• Stranded bare copper conductor insulated by high density thermoplastic polyethylene.
• The conductors are twisted and assembled forming the core of 4 pairs.
• A flame retardant material layer is applied over the core. RJ45 type 8-way connectors are applied on the tips.
• Nominal diameter 24AWG.

Connectors:

• High impact resistant polycarbonate flame retardant UL94-V0.
• Injected boot with plug latch protector.
• Phosphorous bronze with 1.27µm of gold and 2.54 µm of nickel.
• Number of insertion cycles: 1000.
• Standard Assembly: T568A (others upon request).

Environment: Indoor- non aggressive

APPLICABLE STANDARDS

International:

• IEC 60603-7
• RoHS Directive

The product complies with the RoHS Directive - restricting the use of heavy metals in product manufacturing and environmental preservation.

National:

• ABNT NBR 14565

CERTIFICATIONS

• UL Listed
• ANATEL

WARRANTY

• 02 years for manufacturing default (See 25-year extended warranty program)
