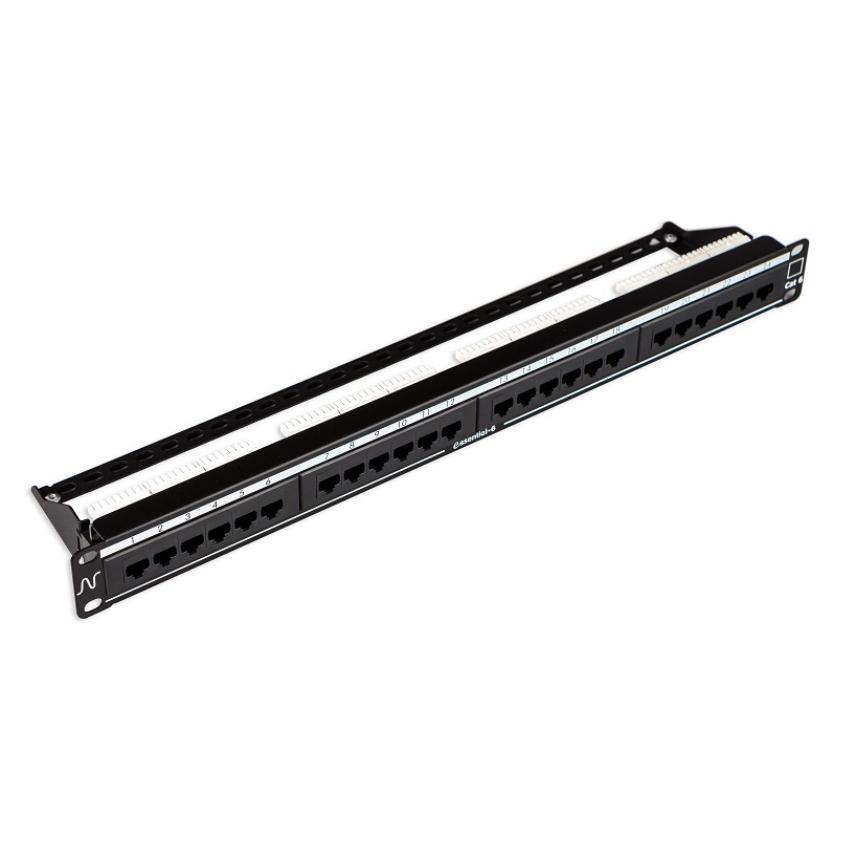

Patch Panels CAT6

The Nexans CAT6 patch panel line is the 250MHz bandwidth offer for class E applications up to 1Gbits. The Nexans CAT6 patch panel line is designed to meet the needs of horizontal and secondary structured cabling systems in cross-connect telecommunication rooms, with the function of securely distributing voice, data and image services.

CONSTRUCTION

• Meets the requirements established by Cat6, Class E standard.
• Body made of metallic material in SAE steel with flat front epoxy paint in black
• 4 modules of 6 connectors in high impact thermoplastic non flame spread (UL 94-V0).
• Rear metal guide with individual fixing and for cable organization.
• Connection terminals in tinned phosphor bronze, standard 110 IDC, for conductors from 22 to 24 AWG.
• Phosphor bronze contact wire material with 2.54µm nickel and 1.27µm gold layers.
• Supplied with fixing accessories (screws and washers).
• Designed for installation in 19" Rack, according to EIA-310D standard requirements.
• Supplied in 2 options: 24 ports and 48 ports, using only one Rack unit, generating space savings for high density applications.
• Meets T568A or T568B crimping standards.
• Identification of the brand and category silk-screened on the front of the product

APPLICABLE STANDARDS

Internationals:

• IEC 60603-7
• RoHS Directive

The product complies with the RoHS Directive - restricting the use of heavy metals in product manufacturing and environmental preservation.

National:

• ABNT NBR 14565

CERTIFICATION

• UL Listed

WARRANTY

• 02 years (See 25 years extended warranty program)
